Product Description

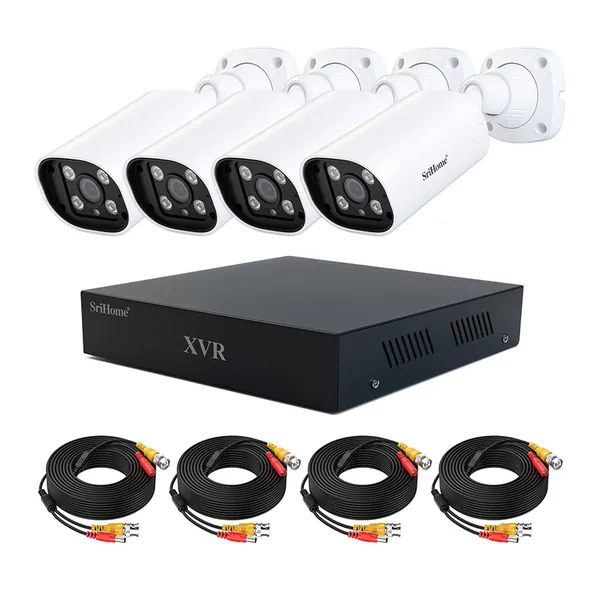

The SriHome NVS008-AHD005 XVR is a reliable hybrid video recorder designed for modern CCTV installations in homes, offices, shops, schools, and commercial spaces. Built on an embedded Linux system, this XVR supports multiple camera formats and delivers stable performance for continuous surveillance recording and remote monitoring.

With support for up to 5MP camera input, advanced H.265+ video compression, and HDMI/VGA HD output, the recorder ensures clear playback while saving storage space and bandwidth. The system allows manual, scheduled, or motion-triggered recording, helping users capture only important events while maximizing hard-drive efficiency.

The unit includes RJ45 network connectivity for remote viewing through the SriHome mobile app (Android & iOS), enabling real-time monitoring, playback, alerts, and system control from anywhere. With motion detection and human detection alarms, the XVR sends instant notifications so you stay informed about activity around your property.

Supporting up to 16TB SATA storage, USB backup, and multi-channel playback, the NVS008-AHD005 is an ideal central recorder for small-to-medium CCTV systems requiring dependable security performance and easy operation.

Key Attributes / Selling Points

Hybrid XVR supporting multi-format CCTV cameras

Supports up to 5MP camera input resolution

H.265+ compression reduces storage usage and bandwidth

4-channel video input for CCTV expansion

HDMI & VGA HD output for monitor connection

Motion detection + human detection alert system

Remote monitoring via SriHome mobile app

Up to 16TB SATA hard drive support

USB backup to flash drive or external HDD

Stable embedded Linux operating system

Ideal for homes, offices, shops, and warehouses

Technical Specifications

System

Operating system: Embedded Linux

Processor chipset: MC6630

Memory: 1GB

Language support: Multi-language

Video

Video input: 4 channels

Max supported resolution: Up to 5MP input

Video compression: H.265+ / H.264

Video output:

1 × HDMI (HD output)

1 × VGA (HD output)

Audio

Two-way audio support via coaxial

Audio decoding: G.711 / ADPCM

HDMI audio output supported

Recording & Playback

Recording modes:

Manual recording

Scheduled recording

Motion detection recording

Playback: Multi-channel simultaneous playback

Backup: USB flash drive / external USB HDD

Storage

HDD interface: 1 × SATA

Maximum capacity: Up to 16TB

Network

LAN port: RJ45 10/100 Mbps Ethernet

Network protocols:

TCP/IP

DDNS

NTP

UDP

SMTP

Alarm & Smart Features

Motion detection alarm

Human detection alert

On-screen notification

Mobile app push notification

Interfaces

1 × RJ45 LAN port

2 × USB 2.0 ports

1 × HDMI port

1 × VGA port

Power input: DC 12V / 2A

Working Environment

Operating temperature: -10°C to 50°C

Operating humidity: 10%–90% RH
