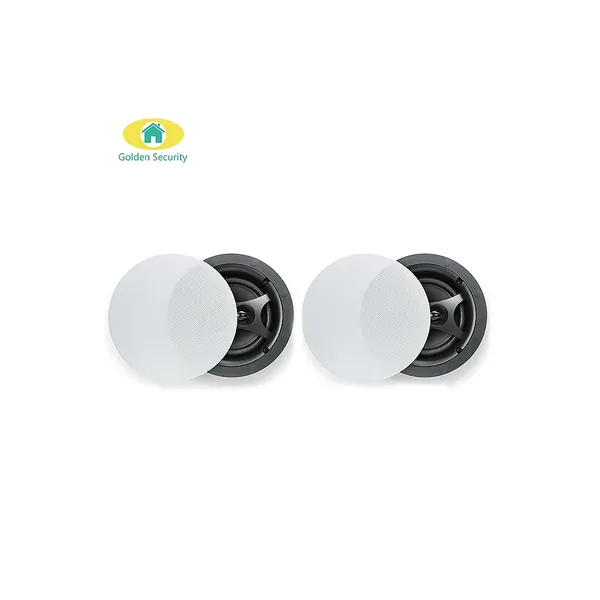

6-Inch Intelligent Active Ceiling Speaker - the ideal solution for modern smart homes, offices, or commercial spaces. Designed as an all-in-one active speaker (built-in amplifier & DSP), it delivers crystal-clear audio without the bulk of external amps or complex wiring. Whether streaming via Bluetooth/Wi-Fi or integrating with smart assistants (Alexa, Google Home), these speakers offer both power and flexibility.
With a slim, flush-mount design and durable grille, these units blend seamlessly into ceilings for aesthetic appeal. The intelligent features: such as auto detection, built-in DSP, volume caps, and multi-room compatibility, make them perfect for spaces where clean installation and smart control are important: lobbies, boardrooms, kitchens, bathrooms, or any room needing immersive ceiling sound.
Active / Powered Design: Built-in amplifier (Class D or similar) eliminates need for separate amplifier rack; simplifies installation and reduces wiring.
Smart Connectivity: Bluetooth 5.0, Wi-Fi, or proprietary wireless options; compatible with smart home systems; some models include support for voice-assistants.
DSP & Control Features: Adjustable crossover, EQ, volume cap, possibly remote or app control; ensures optimal sound tuning and protection of hearing.
6-inch Woofer + Tweeter Configuration: Balanced frequency response with enough bass depth for typical indoor environments without requiring oversized enclosures.
Slim / Low Profile Mount: Low mounting depth allows installation in standard ceilings (especially useful where joist space or ceiling cavity is limited).
Durable Build & Finish: Rust-resistant grille, ABS/plastic or metal body, sealed or moisture-resistant options for bathrooms/outdoor covered spaces.
Aesthetic Integration: Flush, paintable grilles; minimal bezel; modern look that blends into ceiling architecture.
Multi-room / Master-Slave Options: Some models allow one master active plus passive/slave speakers to extend across zones.
Safety & Compliance: Overload protection, thermal protection, meet electrical safety standards; some units fire-rated or damped for use in rated ceiling spaces.
Here are specs from existing models to give you reference points, plus what to specify for your version:
| Spec | Typical Value / Range |
|---|---|
| Driver Configuration | 6-inch woofer + 0.75-1″ tweeter (often dome type) |
| Woofer Material | Polypropylene, woven fiberglass, or mica cone |
| Tweeter Material | Silk dome, titanium, or metal dome tweeter |
| Power Output (RMS / Continuous) | 30-50 W RMS for active component; peak maybe up to 70-100W depending on driver and enclosure |
| Impedance (for passive models or passive segments) | 8 Ω nominal; maybe down to ~4-6Ω for certain loads |
| Sensitivity | ~ 88-92 dB SPL (1W/1m) |
| Frequency Response | Approx. 55-60 Hz up to 20 kHz (-3dB point); extension downward depends on enclosure / cavity |
| Mounting Depth | ~ 3.5-5 in (90-130 mm) depending on model |
| Cut-Out Diameter | ~ 7.5-9 in (190-230 mm) — varies by bezel and mounting flange |
| Finish / Grille | White matte, paintable metal or powder-coated steel, rust/moisture resistant matte grille |
| Enclosure / Housing Material | ABS/plastic or light metal; sealed or partially sealed back for moisture zones |
| Connectivity / Inputs | Bluetooth (v5.0 in many); auxiliary / RCA input; WiFi in some; master-slave wiring; built-in sources |
| Amplifier Type | Class D for active versions—efficient, low heat, compact |
| Power Supply | Typically DC supply (if built-in amp) or via transformer/mains; may include switching power supply or PoE in premium models |
| Operating Temp | ~0-40°C (32-104°F) typical; storage maybe lower/higher depending on manufacturer |
| Certifications | CE, RoHS, FCC; possibly UL listed; electrical safety standard compliance |
| Warranty | 1-3 years standard; premium models may offer longer |
