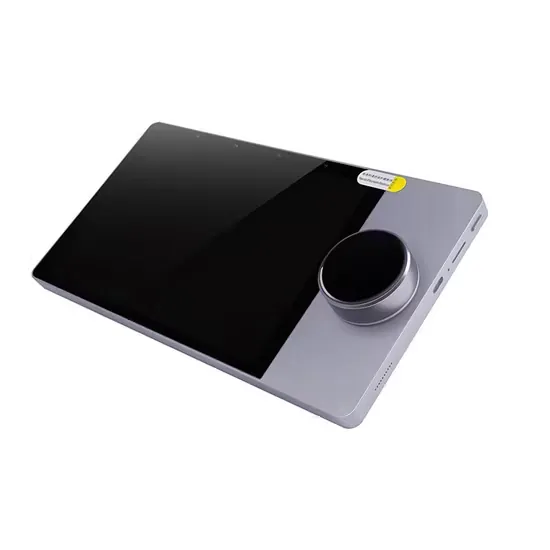

The 10-Inch Tuya Zigbee Wi-Fi Smart Wall Central Control Panel is an all-in-one smart home command center designed to manage and automate your entire home from a single elegant touchscreen interface. Built on the Tuya smart ecosystem, this wall-mounted control panel combines smart device control, Zigbee gateway functionality, automation scenes, and multimedia control into one powerful smart home hub.
Featuring a large 10-inch HD capacitive touch display, the panel allows users to control lighting, curtains, air conditioning, security systems, smart locks, sensors, music systems, and other connected devices without switching between multiple mobile apps.
With built-in Zigbee and Wi-Fi connectivity, the device acts as a central gateway that connects directly to Zigbee sub-devices while also enabling remote access through the Tuya Smart or Smart Life mobile app. Users can create customized automation scenes, monitor device status in real time, and manage their smart home locally or remotely.
The integrated audio amplifier and multimedia support allow the panel to function as both a smart controller and home audio interface, making it ideal for smart homes, luxury apartments, offices, hotels, and modern automation projects.
Designed for in-wall installation, the control panel delivers a clean, modern appearance while providing fast, centralized control for a fully connected living experience.
10-inch HD touchscreen smart home control panel
Centralized control for entire smart home system
Built-in Zigbee gateway + Wi-Fi connectivity
Controls lighting, curtains, HVAC, security & scenes
Works with Tuya Smart / Smart Life App
Supports touch, app, and automation control
Real-time device monitoring & feedback
Built-in amplifier for smart audio integration
Scene automation for one-touch smart living
Wall-mounted modern smart home interface
Ideal for homes, offices, hotels & smart apartments
Screen Size: 10 Inches
Screen Type: IPS Capacitive Touch Screen
Resolution: 1200 Γ 800 / 1280 Γ 800 HD
Multi-Touch: Supported
Operating System: Android-based system
CPU: Quad-core processor (Cortex-A35/A53 class)
RAM: 2GB
Internal Storage: 8GB (varies by version)
Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
Zigbee Protocol: Zigbee 3.0 built-in gateway
Bluetooth: Supported
Ethernet (RJ45): Supported (selected models)
App Control: Tuya Smart / Smart Life (Android & iOS)
Lighting control
Curtain motor control
HVAC / Air conditioning control
Smart switches & sensors
Scene automation
Security system integration
Multi-device dashboard control
Built-in amplifier output (up to 2Γ25W depending on model)
Bluetooth music streaming
Audio input/output supported
Multi-zone audio control supported
Installation Type: In-wall mounted
Power Supply: AC 100β250V, 50/60Hz
Control Method: Touch screen + Mobile App + Automation
Operating Temperature: β5Β°C to 45Β°C
Working Humidity: 5%β90% RH
Material: PC + ABS / Metal composite
Color: Black / Grey (varies by model)
Approx. Dimensions: ~299 Γ 160 Γ 60 mm (model dependent)
Whole-house smart device control from one screen
Built-in Zigbee hub eliminates need for external gateway
One-touch smart scenes (Home, Away, Night, Movie Mode)
Real-time status monitoring of devices
Remote control via mobile app anywhere
Multi-interaction: touch + app + automation control
Smart homes & luxury apartments
Offices & meeting rooms
Hotels & short-let apartments
Smart villas & duplex automation
Showrooms & commercial automation projects
